The Story

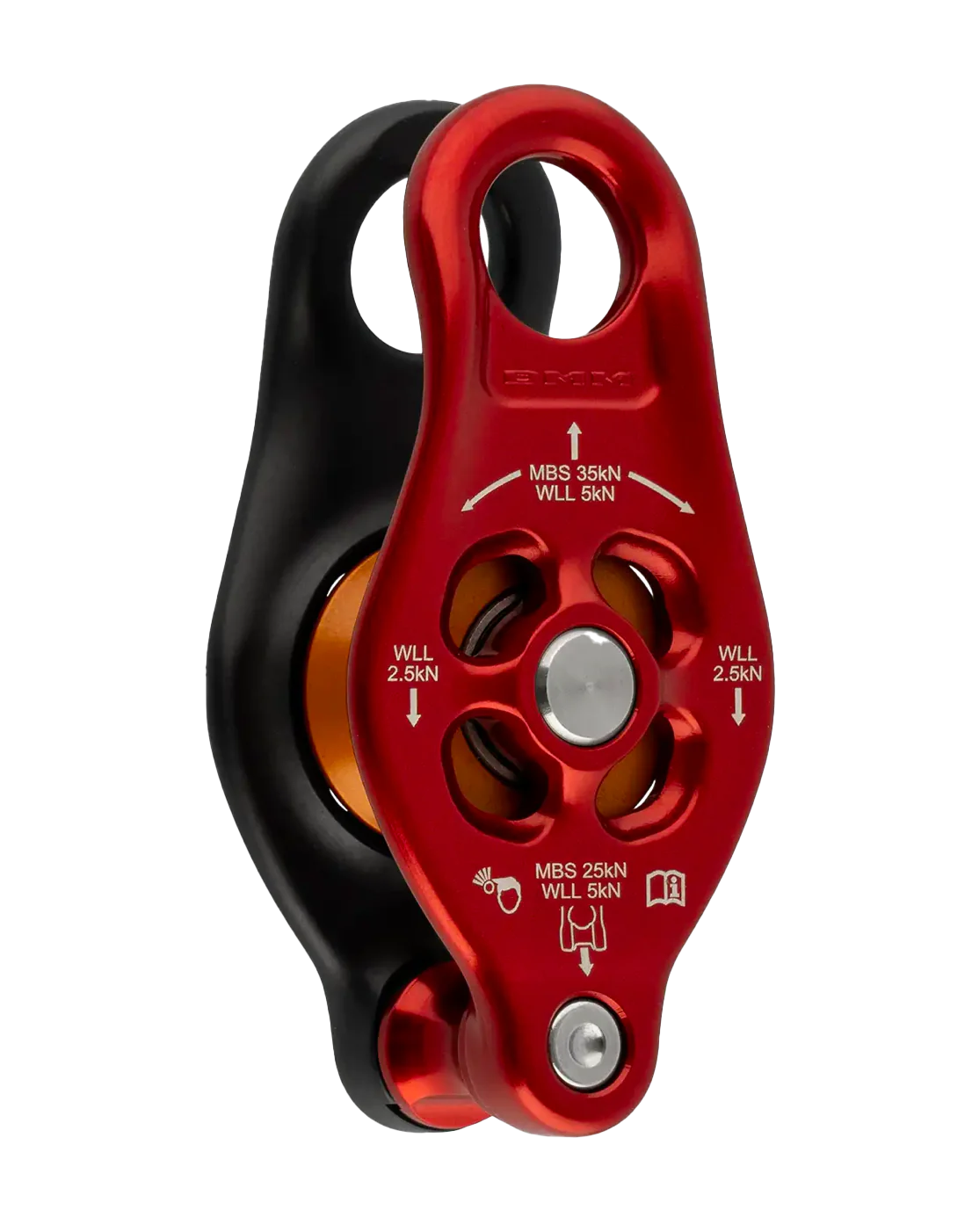

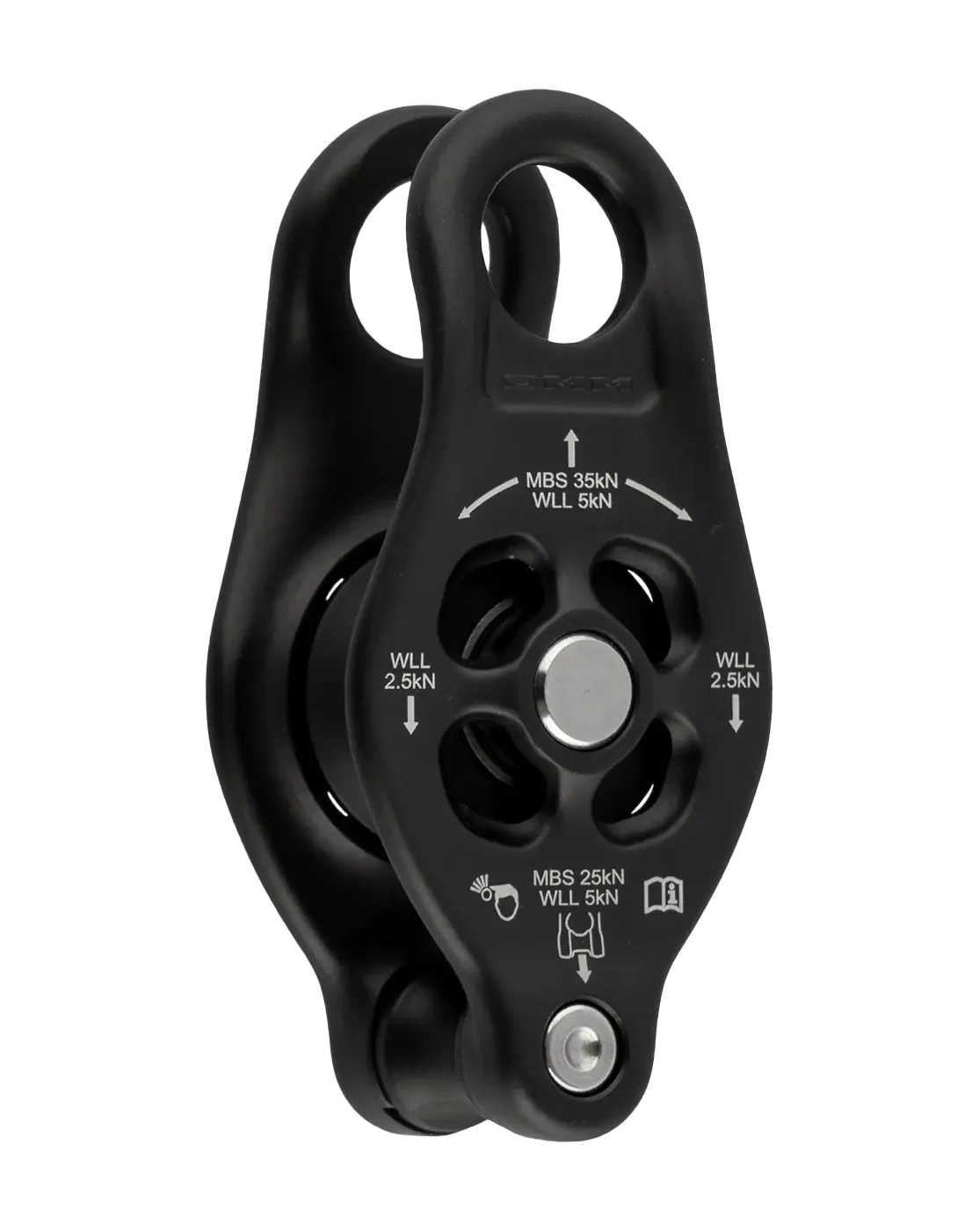

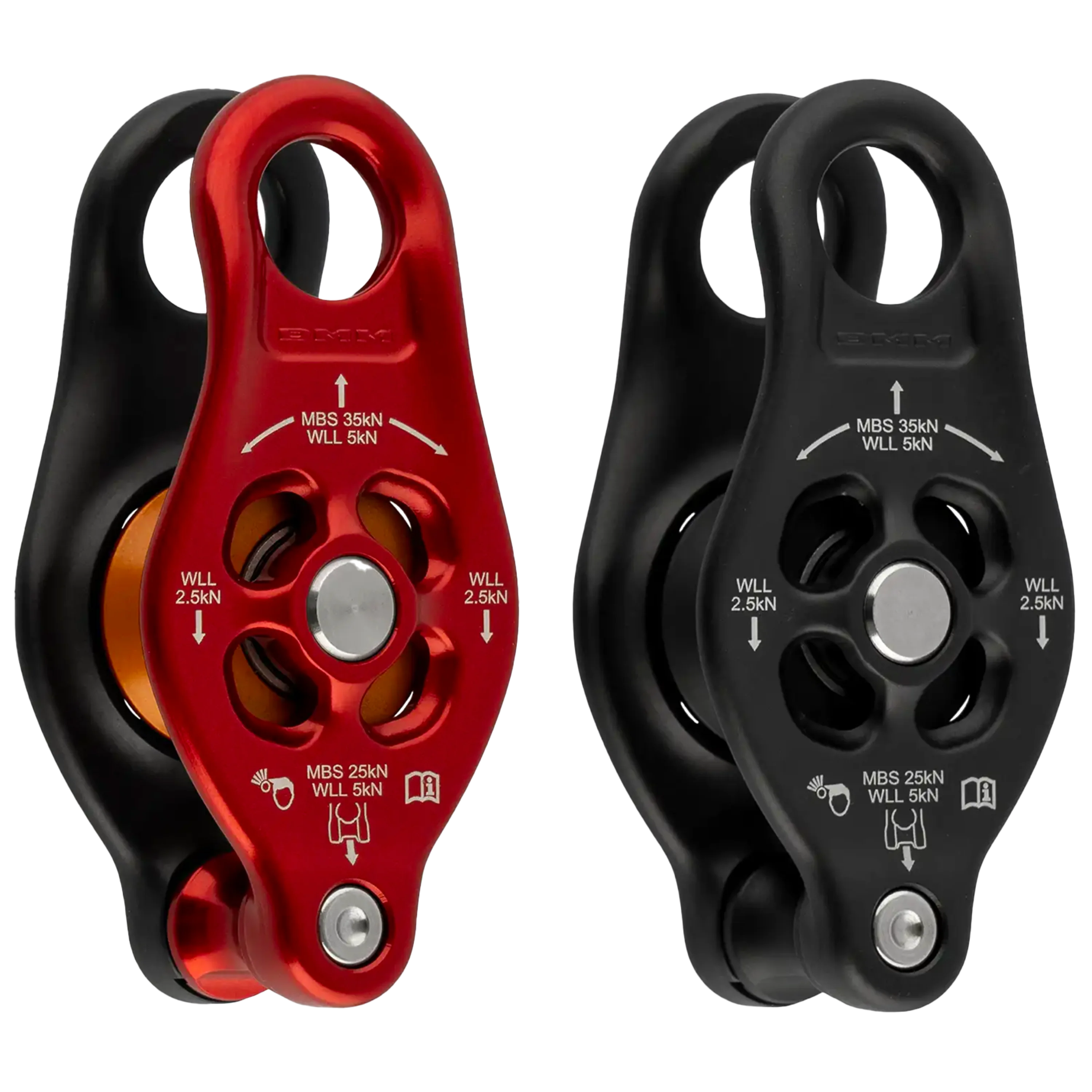

Upgrade your pulley game with the DMM Pinto 2. With smooth lines, textile friendly connections, and a full strength becket, this versatile pulley performs even better than the beloved original. Compact, lightweight, and fitted with efficient ball bearings, the Pinto 2 is a classic that continues to improve.
FEATURES
- Full strength attachments at eye and becket provide a wide range rigging options
- Fixed sideplate design is easy to clip into and load onto tensioned ropes
- Hot forged and robust, with smooth rope and textile friendly fairleads and edges
- Connect directly in with textile components for extra versatility: increase lift height, minimise space required, or enhance tolerance to torsion
- Recessed sheave design helps rope feed smoothly from all angles
- Sealed ball bearings for high efficiency and low maintenance
- Optional spacer available separately for use with rope connection
- Tamperproof construction
- Made in Wales, and certified for peace of mind
| MBS | WLL | Dimensions | Weight | Rope Diameter | Certification | |||
|---|---|---|---|---|---|---|---|---|
| 35kN (26kN Becket) | 5kN (5kN Becket) | 95 x 45 x 34mm | 117g | 14mm Max | EN12278:2007 NFPA 2500 (1983) 2022 ED (G) |
|||
